  • insulation piercing connector JCF10-240/185

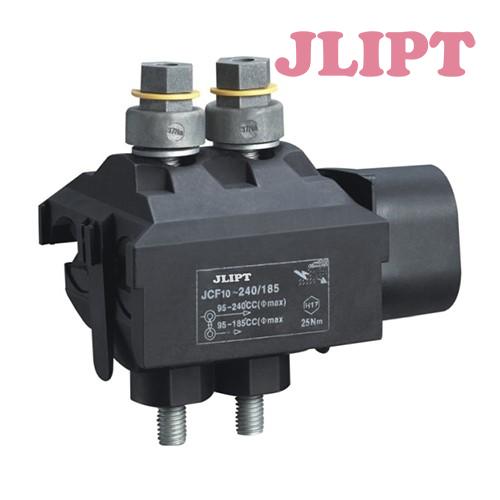

insulation piercing connector JCF10-240/185

  • Product Item:JCF10-240/185
  • Application: Cable Connector, ABC cable
  • Material: PA66
  • Performance: Fireproof,waterproof
  • Connecting Blades/teeth: Copper Tinned or Brass Tinned
  • Inquiry Send Email

    Description

    TypeJCF10-240/185
    Main line section
    mm295-240
    AWG4/0-00000
    Branch sectionmm295-240
    AWG1/0-400
    Nominal currentA679
    Bolt torque H(Nm)Quantity2×M10
    H (Nm)H17(37Nm)
    Piercing depthmm4.5-6


    Product Application

    JCF1 Insulation Piercing Connector
    IEC standards, GB/T 2317.1, 4-2000, DL/T 765.1, 3-2004, NFC 33 020.
    For Connecting CABLE in INSULATED MAINS to INSULATED MAINS or INSULATED SERVICES
    JCF1 range of insulation piercing connectors (IPC) provide a fast, convenient and reliable method of connecting overhead low voltage mains to services or other mains.
    All common types of conductors can be interconnected, including insulated aluminium or copper.
    The connectors have been tested to Authorization Lab and are approved for use by power distribution utilities (Consult for further details).


    More information about insulation piercing connectors:

    1.Mechanical property: The IPC connector is no damage when strain cable.

    2.Waterproof property: The dielectric strength test up to 15kw(MV),6kv(LV)in the water.

    3.Temperature rise property: The temperature rise of IPC is low than the cables when the big current transmitted.

    4.Electric property: The certain torque screw and high grade conductive piercing teeth is assure the IPC stable and good

    electric performance.

    5.Application range: Tap connect the Cu and Al. Cable range from 1.5sq.mm to 400 sq.mm.
