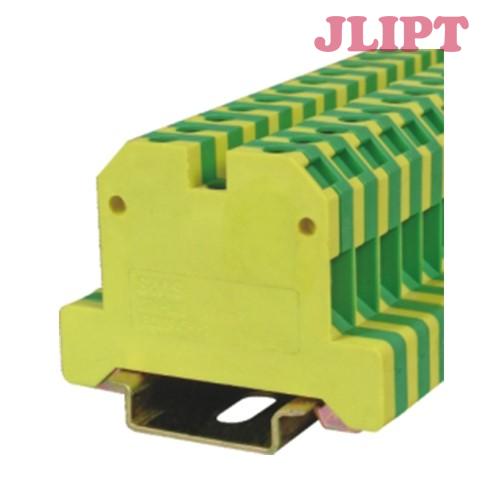

STK(SAK) Ground Din Rail Terminal Blocks

Product Item：SAK2.5

Dielectric strength (KV×mm)：30

Resistance rate (Ω×mm) ：＞1015

Comparative tracking Index (CTIV)：350

Long working temperature (℃)：100

Description

Product description

Resistance rate (Ω×mm) ：＞1015
Dielectric strength (KV×mm)：30
Comparative tracking Index (CTIV)：350
Long working temperature (℃)：100
Lowest Static Working Temperature (℃)：-50

ITEM NO.		STK-2.5JD	STK-4JD	STK-6JD
Order No.		06007	06008	06009
Dimentions
Width x Length x Height	(mm)	57/6/37	57/8/41	57/12/48
Nominal screw diameter	(mm)	M2.5	M3	M3.5
Torque	(Nm)	0.4-0.8	0.8-1.6	2.0-2.4
Stripping Length	(mm)	10	12	12
Rated Data
Voltage Rating/ Current	(V) / (A)
Power-frequency withstand voltage
Wire section	(m㎡)	2.5	4	6
Connecting capacity
Single wire	(m㎡)	0.5-4	0.5-6	0.5-10
Multistrand wire	(m㎡)	1.5-2.5	1.5-4	1.5-6
Multistrand wire with termina	(m㎡)	0.5-2.5	0.5-4	0.5-6

ITEM NO.		STK-10JD	STK-16JD	STK-35JD
Order No.		06010	06043	06059
Dimentions
Width x Length x Height	(mm)	57/10/48	57/12/48	67.5/16/58
Nominal screw diameter	(mm)	M4	M4	M6
Torque	(Nm)	1.2-2.0	2.0-2.4	2.5-5
Stripping Length	(mm)	12	12	20
Rated Data
Voltage Rating/ Current	(V) / (A)
Power-frequency withstand voltage
Wire section	(m㎡)	10	16	35
Connecting capacity
Single wire	(m㎡)	0.5-16	2.5-16	6-50
Multistrand wire	(m㎡)	1.5-10	2.5-16	6-50
Multistrand wire with termina	(m㎡)	0.5-10	4-16	6-35
