Description

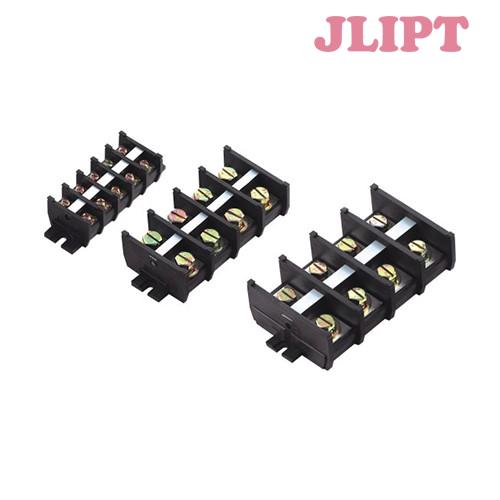

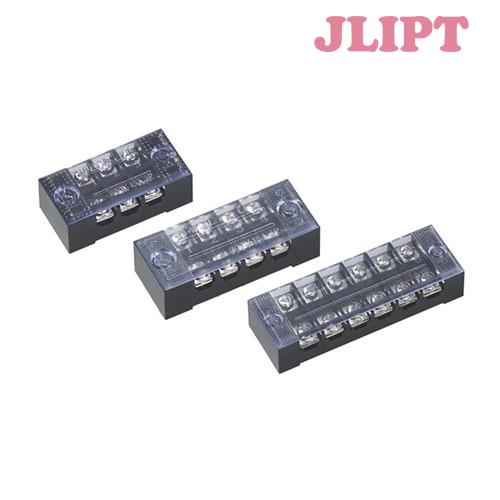

STC Series High Current Terminals
The product is simple in structure, easy to install, and can be used with circular pre-insulated terminals. It is more reliable and can be used for high current wiring in various electrical devices.。
Product Overview
STC series high current terminals adopt plate screw press-bonded base enclosed integral structure, rated voltage 600V, rated current: 60A, 100A, 150A, 200A, 300A, 400A, 500A, 600A altogether eight specifications, according to the contact logarithm can be divided into 3, 4P two specifications, can connect the conductor cross-section 10-300mm2. The product is simple in structure, easy to install, and can be used with circular pre-insulated terminals. It is more solid and reliable, and can be used for high current wiring in various electrical devices.

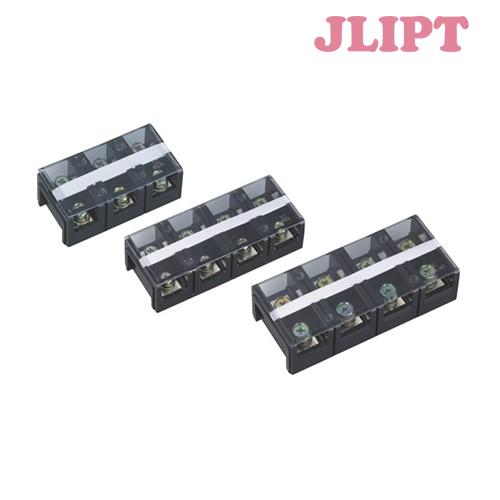

This series is also equipped with dust-proof cover and PVC white marking for easy installation and use.
This series of products can be installed directly by punching holes on the bottom plate. The installation dimensions are shown in table (1) L1, phi 1, Phi 2 and schematic drawings.
Installation, Outline Dimension Table and Schematic Drawings of STC Series Products
| Product Specification | Rated current(A) | Pole number | Installation dimensions | Crimping screw (mm) | Order No. | |||||
| L1 | Φ1 | Φ2 | L | B | H | |||||
| STC-603 | 60 | 3 | 28.5 | 5.4 | 10 | 85 | 42 | 33 | M6 | 12001 |
| STC-604 | 60 | 4 | 57 | 5.4 | 10 | 114 | 42 | 33 | M6 | 12002 |
| STC-1003 | 100 | 3 | 34 | 6 | 10 | 102 | 54 | 38 | M7 | 12003 |
| STC-1004 | 100 | 4 | 68 | 6 | 10 | 136 | 54 | 38 | M7 | 12004 |
| STC-1503 | 150 | 3 | 38 | 6 | 11.5 | 115 | 66 | 42 | M8 | 12005 |
| STC-1504 | 150 | 4 | 76 | 6 | 11.5 | 153 | 66 | 42 | M8 | 12006 |
| STC-2003 | 200 | 3 | 44 | 8.3 | 11.5 | 131 | 71 | 47 | M8 | 12007 |
| STC-2004 | 200 | 4 | 88 | 8.3 | 11.5 | 177 | 71 | 47 | M8 | 12008 |
| STC-3003 | 300 | 3 | 55 | 8.3 | 11.5 | 164 | 90 | 53 | M10 | 12009 |
| STC-3004 | 300 | 4 | 110 | 8.3 | 11.6 | 220 | 90 | 53 | M10 | 12010 |
| STC-4003 | 400 | 3 | 55 | 8.3 | 11.6 | 164 | 90 | 53 | M10 | 12011 |
| STC-4004 | 400 | 4 | 110 | 8.3 | 11.6 | 220 | 90 | 53 | M10 | 12012 |
| STC-5003 | 500 | 3 | 68.5 | 8.7 | 11.6 | 206 | 100 | 72 | M12 | 12013 |
| STC-5004 | 500 | 4 | 137 | 8.7 | 11.6 | 275 | 100 | 72 | M12 | 12014 |
| STC-6003 | 600 | 3 | 68.5 | 8.7 | 11.6 | 206 | 100 | 72 | M12 | 12015 |
| STC-6004 | 600 | 4 | 137 | 8.7 | 11.6 | 275 | 100 | 72 | M12 | 12016 |
