SKJ(UK) High Current Terminal Blocks

  • Product Item:UK50
  • Material: PA66
  • Conductor :16-240MM2
  • Inquiry Send Email

    Description

    The structure design of common large current terminal ensures the reliable connection of large cross-section conductors: the bottom of prismatic insert wire-pressing frame has grooves to ensure that the contact surface after connection has low value transition resistance; and the self-locking of screw is realized by using elastic elements.

    Product Description

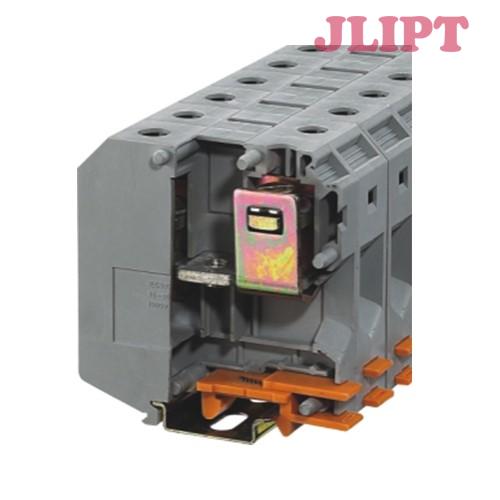

    SKJ-50 High Current Terminal

    The structure design of common large current terminal ensures the reliable connection of large cross-section conductors: the bottom of prismatic insert wire-pressing frame has grooves to ensure that the contact surface after connection has low value transition resistance; and the self-locking of screw is realized by using elastic elements.

    The cross-section of universal high current terminal accessible conductor is 16-240mm2. We have taken effective measures in terminal construction to ensure reliable wiring. These measures include:

    The bottom of the terminal clamp body is prismatic, which ensures the three-point alignment of the conductor.

    The bottom of the clamping body is grooved to ensure that the contact surface after connection has low value transition resistance.

    Self-locking screw is realized by using elastic components. These terminals are equipped with a two-part enclosed insulating enclosure made of nylon Pa6.6. The terminal can be installed on TH35-7.5 guideway or G32-18, G32-15L guideway by using the locking auxiliary spring attached to the terminal.

    ITEM NO.SKJ-50SKJ-95SKJ-150
    Order No.010090101001011
    Dimentions
    Width x   Length x Height    (mm)71/20/7683.2/25/90.1101.4/32/111
    Nominal screw diameter  (mm)M6M8M10
    Torque(Nm)6-815-2025-30
    Stripping Length(mm)243340
    Parameter
    Voltage Rating(V)100010001000
    Current Rating(A)150232309
    Wire section(m㎡)5095150
    Wire Range
    Rigidity wire range(m㎡)16-5025-9535-150
    Soft wire range(m㎡)25-5035-9550-150
