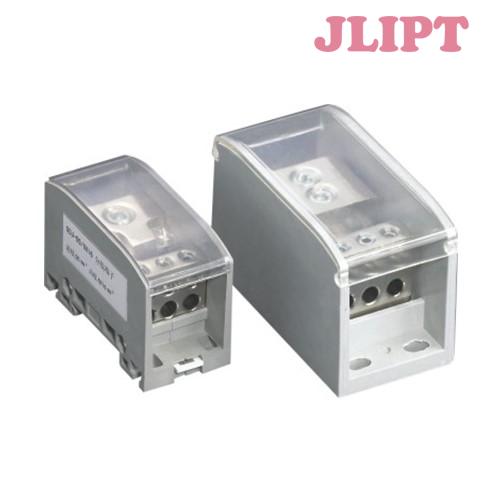

SDJ Series Multipurpose Terminal blocks

  • Product Item:SDJ Series Multipurpose Terminal blocks
  • Inquiry Send Email

    Description

    SDJ Series


    Product description


    SDJ Series Multipurpose Terminal

    Product overview

    SDJ series multi-purpose terminals are specially designed for wiring in various types of electronic control and distribution equipment, complete sets of devices and combined terminal electrical box. The rated insulation voltage of the product is 690V and the rated working voltage is 380V. The maximum cross-section of the connecting wire at the end of the line is 2.5-300mm2. This product is used for bus bar, high current terminal, zero connection, grounding terminal and equipotential terminal in various kinds of electrical devices.

    Structural characteristics

    SDJ multipurpose terminal is composed of conductive parts, insulating seat and protective cover. It is compact in size and reliable in structure. Its incoming end can connect wires directly (cylindrical connection), circular bare end (line nose) connection (plate connection), and copper bar with width of 30 mm. Its outlet end can be unified as cylindrical connection. Compression line screw bottom extrusion force, more reliable contact.

    Installation and use

    This series of products provide two installation modes:

    1. Direct drilling and installation on the bottom plate;

    2. Installed on TH-35-7.5 guide rail.

    Multi-core wires are recommended for connecting wires. When inserting wires into blind holes, it is necessary to make sure that the bolts can be screwed down after inserting the wires to prevent misconnection. When the cross-section of the access wire is small and the insulation of the wire can be plugged into the connection, the insulation can be allowed to enter the connection hole on the premise of ensuring the reliable contact of the conductor. When using or maintaining the line, the protective shield can be removed only by gently pinching it inward at the hook of the protective shield, and downward pressure can be applied at the screwdriver to ensure that all the hooks are stuck in the hole.


    SDJ Series Installation and Selection Table
    TypestructureConnection Section(mm2)Shape size (wide x thick x high)Screw diameterStrip length(mm)Order No.
    SDJ-35/4 x 10One in, four out, branch terminalsIncoming line35,Out of line 2.5-1078×21×63enterM8,OutM6enter20,Out1005001
    SDJ-35/9 x 4One in, nine out, branch terminalsIncoming line35,Out of line 1.5-478×25.2×63enterM8,OutM4enter20,Out805002
    SDJ-35/6 x 6One in, six out, branch terminalsIncoming line35,Out of line 2.5-678×25.2×63enterM8,OutM4enter20,Out805035
    SDJ-2 x 35/4 x 10Twp in, four out, branch terminalsIncoming line35,Out of line 2.5-1078×21×63enterM8,OutM6enter12/24,Out1005003
    SDJ-70一进一出,大电流端子7078×21×632×M8enter22,Out2205004
    SDJ-70B/2 x 35One in, two out, branch terminalsPlate feeder70,Out of line6-3578×36×63enterM10,OutM8Out2205005
    SDJ-70B/4 x 16One in, foyr out, branch terminalsPlate feeder70,Out of line 4-1678×36×63enterM10,OutM6Out12/2205006
    SDJ-70B/8 x 10One in, nine out, branch terminalsPlate feeder70,Out of line2.5-1078×36×63enterM10,OutM6Out12/2205007
    SDJ-70/2 x 35One in eight out, branch terminalIncoming line70,Out of line 6-3578×36×63enterM10,Out M8Out2205008
    SDJ-70/2 x 50One in two out, branch terminalIncoming line70,Out of line 10-5078×36×63enterM10,OutM8Out2205009
    SDJ-70/4 x 16One in four out, branch terminalIncoming line70,Out of line 4-1678×36×63enterM10,OutM6enter22,Out12/2205012
    SDJ-70/8 x 10One in eight out, branch terminalIncoming line70,Out of line 2.5-1078×36×63enterM10,OutM6enter22,Out12/2205010
    SDJ-70/12 x 6One in twelve out, branch terminalIncoming line70,Out of line 2.5-678×36×63enterM10,OutM4enter20,Out8/16/2205011
    SDJ-2 x 70/2 x 70One in two out, branch terminalIncoming line70,Out of line 10-7078×36×63enterM10,OutM10enter22,Out2205013
    SDJ-2 x 70/4 x 16One in four out, branch terminalIncoming line70,Out of line 4-1678×36×63enterM10,OutM6enter22,Out2205015
    SDJ-2 x 70/8 x 10Two in eight out, branch terminalIncoming line70,Out of line 2.5-1078×36×63enterM10,OutM6enter22,Out12/2205014
    SDJ-95One in one out, branch terminalIncoming line95,Out of line 9578×21×632×M8enter22,Out2205016
    SDJ-95/4 x 25One in four out, branch terminalIncoming line95,Out of line 6-2578×36×63enterM10,OutM8enter25,Out14/2205018
    SDJ-95/2 x 50One in two out, branch terminalIncoming line95,Out of line 16-5078×36×63enterM10,OutM8enter25,Out2205017
    SDJ-95/8 x 10One in eight out, branch terminalIncoming line95,Out of line 2.5-1078×36×63enterM10,OutM6enter25,Out2205019
    SDJ-95/6 x 16One in six out, branch terminalIncoming line95,Out of line 4-1678×36×63enterM10,OutM6enter25,Out2205020
    SDJ-120One in, one out, high current terminalIncoming line120,Out of line12078×36×63M1005022
    安装孔中心距65,安装螺钉M5,也可安装在TH35-7.5安装轨上
    SDJ-95/2 x 70One in, two out, branch terminalIncoming line95,Out of line 16-70100×50×63enter10,OutM10Out3505021
    SDJ-120/4 x 35One in, four out, branch terminalIncoming line120,Out of line 6-35100×50×63enter12,OutM8enter30,Out15/2805024
    SDJ-120/8 x 16One in, eight out, branch terminalIncoming line120,Out of line 4-16100×50×63enter12,OutM6enter30,Out15/2805025
    Installation Hole Spacing 25, Installation Screw M6
    Remarks: Special models can be customized by telephone.

    Inquiry Us





    Related Products

    EU Two Way One Gang Touch Switch

    EU Two Way One Gang Touch Switch

    Insulated Ring Terminals

    Insulated Ring Terminals

    Insulated Pin Terminals

    Insulated Pin Terminals

    insulation piercing connector JCF2-95/95

    insulation piercing connector JCF2-95/95

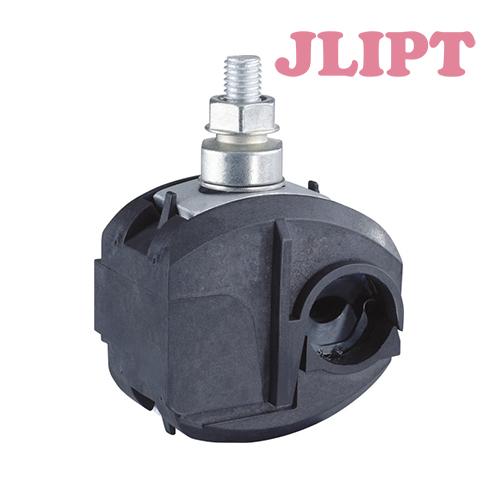

    insulation piercing connector JCF2-240/50
