Description

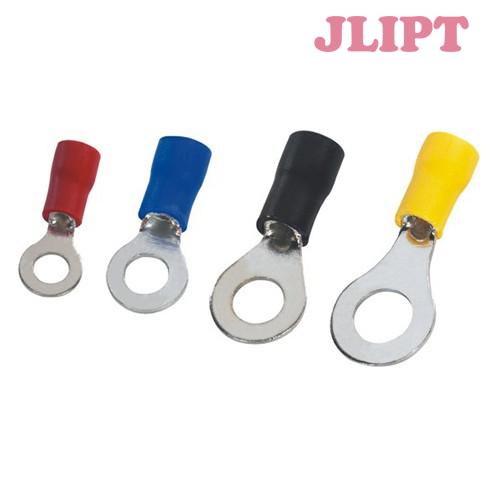

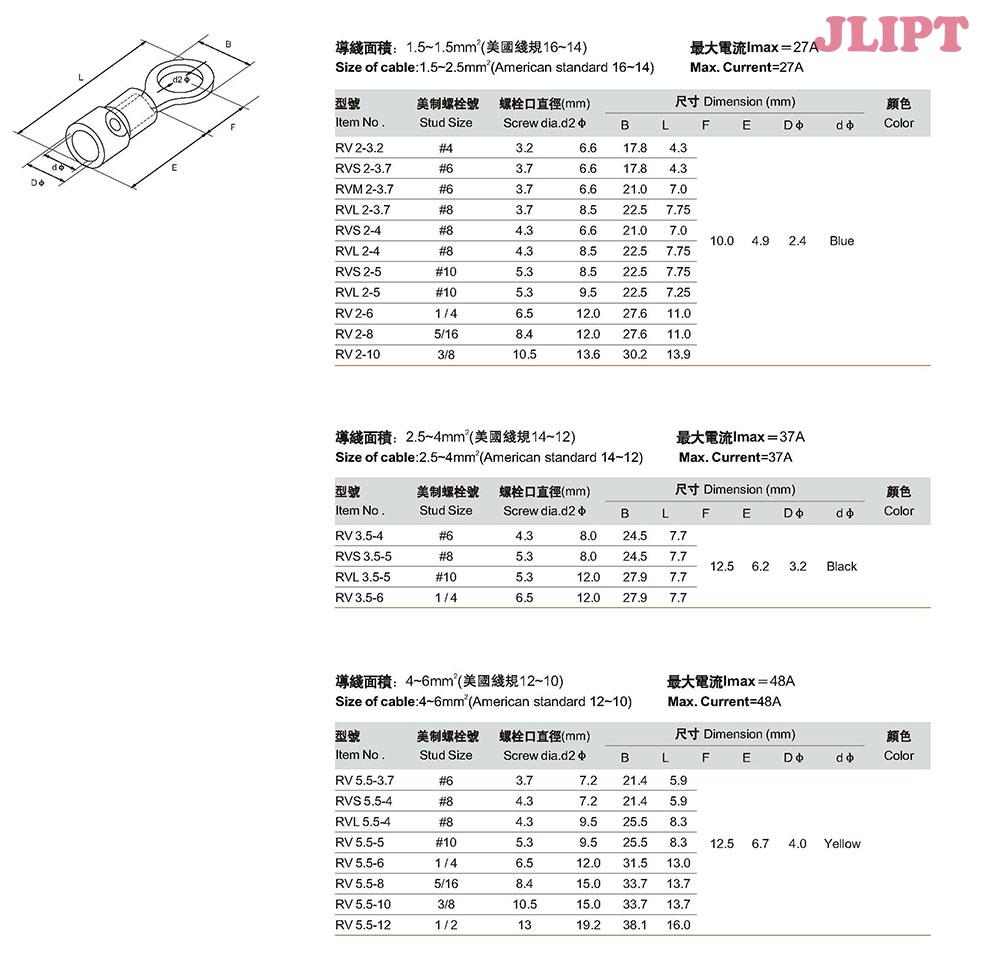

Circular Pre-insulated Terminal | |||||||||
Wire area: 0.5-1.5 mm 2 (US Wire Gauge 22-16) Maximum current Lmax = 19A | |||||||||
Type | Stud size | Screw dia.d2Φ（mm） | Dimensions（mm） | colour | |||||
B | L | F | E | D Φ | d Φ | ||||
RV 1.25-3.2 | #4 | 3.2 | 5.7 | 17.8 | 4.95 | 10 | 4.3 | 1.8 | red |
RVS 1.25-3.7 | #6 | 3.7 | 5.7 | 17.8 | 4.95 | ||||
RVM 1.25-3.7 | #6 | 3.7 | 6.6 | 20.1 | 6.3 | ||||
RVL 1.25-3.7 | #8 | 3.7 | 8 | 21.5 | 7 | ||||
RVS 1.25-4 | #8 | 4.3 | 6.6 | 20.1 | 6.3 | ||||
RVL 1.25-4 | #8 | 4.3 | 8 | 21.5 | 7 | ||||
RV 1.25-5 | #10 | 5.3 | 8 | 21.5 | 7 | ||||
RV 1.25-6 | 1/4 | 6.5 | 11.6 | 27.5 | 11.1 | ||||
RV 1.25-8 | 5/16 | 8.4 | 11.6 | 27.5 | 11.1 | ||||
RV 1.25-10 | 3/8 | 10.5 | 13.6 | 31.6 | 13.9 | ||||
